S470 4U eNTERPRISE HIGH
DENSITY INTELLIGENT
SERVER
Design released on June 19, 2006
webpage updated on March 12, 2008

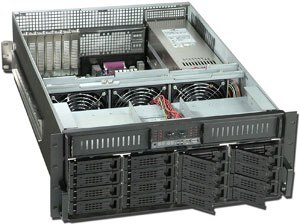

S470 designed with super strong sheet metal works
which is extremely durable as a tank mechanism, all chassis adopted the enhanced
less-cable and mechanical construction design, the surface or the sheet metal's
edge won't have any sharp burs while proceeding the system integration by hands,
combine the strong cooling system control, it's the most ideal system for your HPC system.
It uses the newest twin-door alike design that doesn't require any
hand tools to release the doors when the keylock is opened. Regarding the
motherboard compatibility, it supports all specification such as Intel Dual Core
Xeon LGA 771, Intel Socket 775 P4 as well as
AMD Dual Core Opteron Socket 1207(F) and AM2 platform.

 |
*
Drive bay:
16 x SATAII/SAS hotswap mobile racks, 2 x 5.25" CD bay
(S470SATAII)
16 x SCSI hotswap mobile racks, 2 x 5.25" CD bay
(S470SCSI)
* with aluminum extrusion heatsinks help HDD's cooling
* with dust-proof filtered black butterfly keylock
security front door
*
build-in
People FasTech intelligent device
(fan
fail, LCD temp, USB
2.0)
* with 3 intake 120x38mm
ball bearing fans
*
support eATX 12" x 13" MB, Intel EEB 3.61
and CEB1.01
*
support 7 slot full height (max.
342mm depth) expansion card
*
black colored painting as standard
* chassis dimension:
19" x 4U x 25" (637m deep)
* chassis' package information: NW 17.50 KGM, GW 22 KGM,
6.65 CUFT (79.5x66x36mm, two boxes packed) |
| Model# |
: |
S470SATAIIB |
4U black enterprise high density
intelligent server |
| Model# |
: |
S470SCSIB |
4U black enterprise high density
intelligent server |
| Option 1 |
: |
PSU |
single 750W~950W or redundant
650W~950W power supply with PFC |
| Option 2 |
: |
4USLIDE |
26" slim dry slide rail (pair) |
| Option 2 |
: |
RM300BSLID |
3U/4U slim anodized cabinet rear mounting kit (pcs,
please order 2pcs per chassis) |
| Option 3 |
: |
FAN |
two exhaust
60x25mm ball bearing fans at rear panel |
| |
|
|
|
| |
|
|
