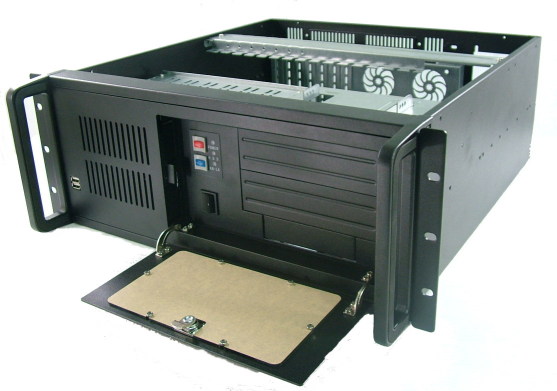

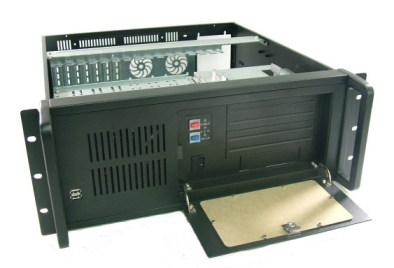

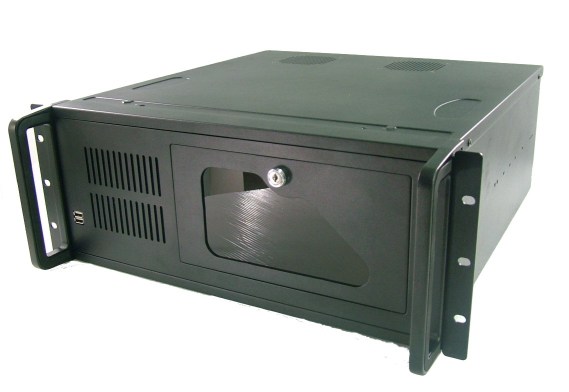

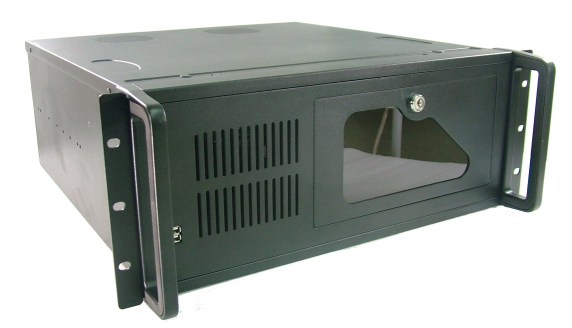

RACK-4400S 4U COST
EFFECTIVE
SERVER CHASSIS
RACK-4400S
designed with special short depth at 450mm (17.71") that still supports maximum
5 internal HDD and 12" x 9.6" ATX form factor motherboard as standard, combine
the strong cooling system inside of the chassis and two invisible USB 2.0 ports
inside of the front door, it's the most ideal system for your enterprise server
or DVR system. Also the most important feature is, it supports low cost but
quality elegant if comparing with the other product in the market. Combine those
merits mentioned above, RACK-4400S is quite competitive in the market, and
suitable for worldwide dealers or wholesaler distribution.

 |
*
Drive bay:
5 x 3.5" HDD, 2 x 5.25" CD , 1 x 3.5" open can be FDD or HDD)
* anti-vibration function to
the drive bay
* two USB 2.0 ports inside of
the front door
* butterfly keylock and air filter of front door

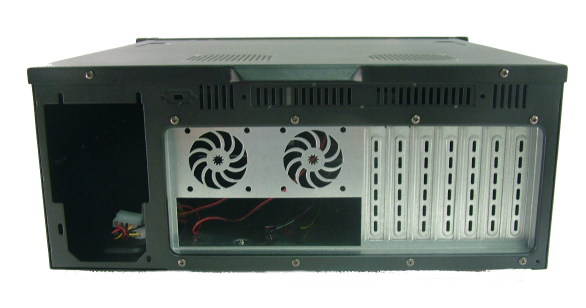

* two exhaust 60 x 15mm fans (at rear panel)
* one intake 120 x 25mm fan (at
front left side)
*
removable plug-in card holder (up, down, left, right direction)
* support 12x9.6" ATX MB
*
support 7 slot full height (max.
210mm depth) expansion card
*
black colored painting as standard
.
* chassis dimension:
19" x 4U x 17.71" (450mm deep)
* package information:
NW 12.4 KGM, GW 12.38 KGM,
3.18
CUFT.
* (56x53x25cm, single box packed),
900 SET can be full loaded in a 40ft HQ container |
| Model# |
: |
RACK-4400SB |
4U black cost effective server chassis |
| Option 1 |
: |
PSU |
PS2 single 350W~550W power supply with PFC
(max. depth 140mm) |
| Option 2 |
: |
NJ-3032-X |
18" or 20"
3-travel extension slide
rail (pair) |
| Option 3 |
: |
RACK-4400S-14S |
14 slot rear panel |
| Option 4 |
: |
MOBILE RACK |
various
5.25" converter |
| Option 5 |
: |
FAN |

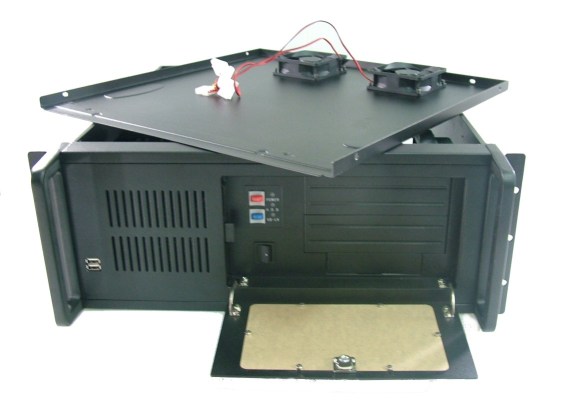

two exhaust 80 x 25mm ball bearing fans
(at top cover) |
| |
|
|
|
| |
|
|
4U accessory
4U ordering data sheet |
|
