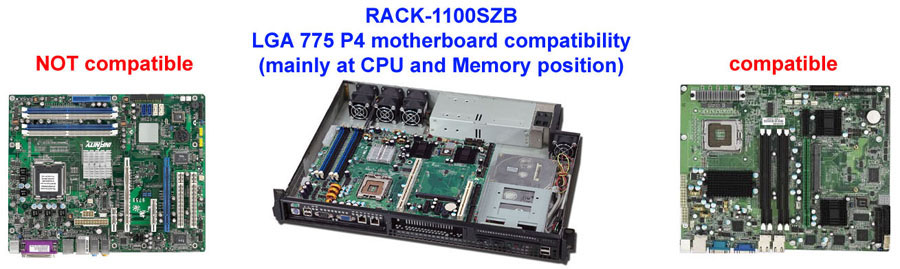

RACK-1100SZ specially designed as 1U NAS and Cluster application, provides the most cost-efficient but powerful cooling system integration through most of standard Intel LGA 775 that the processor is located at upper position of motherboard. With the thermal-correct cooling system, it supports the most stable and cool environment by using LGA 775 P4 processor even the system stand by or full loaded. It's also designed as a durable and strong mechanism, all sheet metal's edge and surface are very smooth when system integration, it's suitable for the enterprise server system and supervisor's system control and management, using the newest front-accessible I/O design, it's very convenient to manage the cable routing or maintenance without opening the rear door of cabinet, through the 12.55" short depth of chassis, it can load two set of RACK-1100SZ chassis in one 1U layer of the cabinet, saving the most efficient space for your valuable and limited cabinet inside. As to the motherboard compatibility, it fits most 12x9.6" ATX form factor motherboard in the market as well.

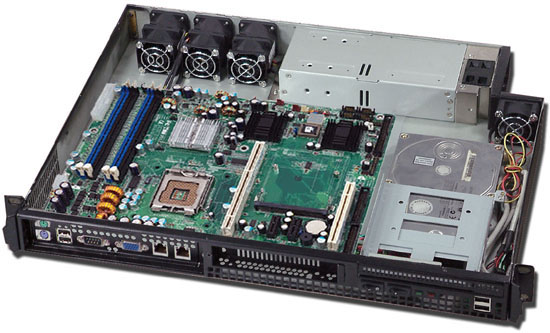

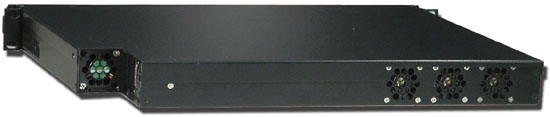

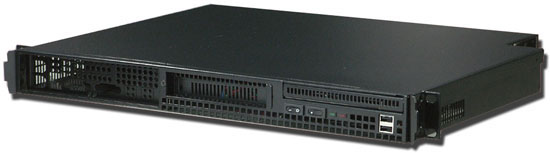

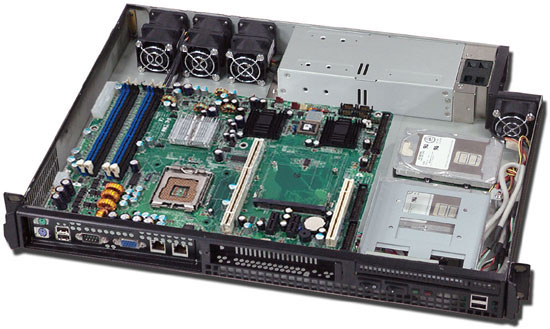

* Drive bay:   1 x 3.5" HDD, 1 x slim CD(standard)   or 2 x 2.5" HDD, 1 x slim CD(standard)   or 3 x 2.5" HDD, 1 x slim CD(need to order extra bracket) * with two USB 2.0 ports at front bezel * with 3 intake Sanyodenki 40x56mm ball bearing fans * with 1 exhaust 40x20mm ball bearing fan * with rotatable left-right angle riser card bracket (world patented) * support most 12x9.6" ATX MB (recommended form factor) * support 1 slot full height (max. 247mm depth) expansion card * black colored painting as standard * chassis dimension: 19" x 1U x 12.55" (319mm deep) * chassis' package information: NW 4.5 KGM, GW 5.5 KGM,     1.24 CUFT (54.5x44.5x14.5cm, two boxes packed)
