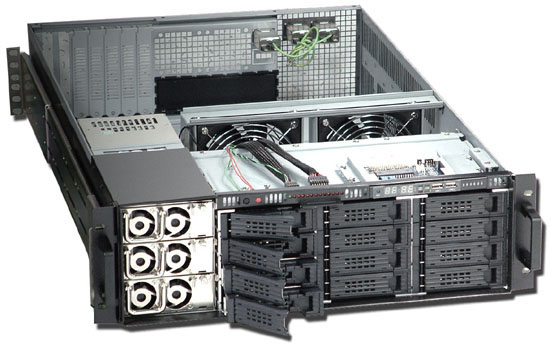

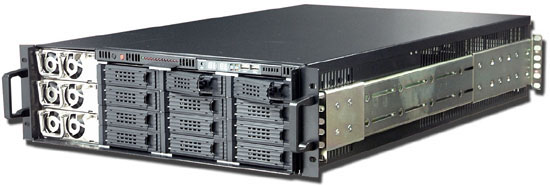

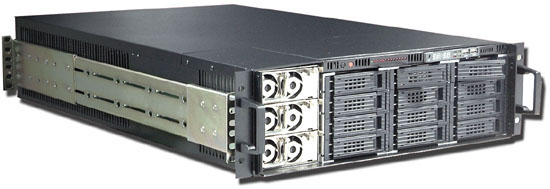

E350QO 3U eNTERPRISE
QUAD OPTERON SERVER
Design released on August 20, 2005
webpage updated on March 12, 2008
It's powered by Quad AMD Opteron™ Processors
as the basic construction of this chassis design, through breakthrough-in-compactness
cooling system, it supports AMDŽ Quad-Opteron up to 850+ at even 89W
power consumption processors under 70-degree C when the room temperature at 35-degree
C and 100% full-load by AMD ThermNow testing software, through 12
internal or hot swap SATAII or SAS drive
capacity reaches the maximum storage devices as the most strongest server
platform in the market.

 |
*

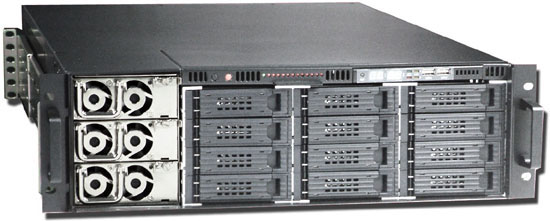

Drive bay:
12 x SATAII/SAS hotswap mobile racks
(E350QOSATAII)
12 x SCSI hotswap mobile racks
(E350QOSCSI)
* with aluminum extrusion heatsinks help HDD's cooling
*
build-in
People FasTech intelligent device
(fan
fail, LCD temp, USB
2.0)
*
build-in

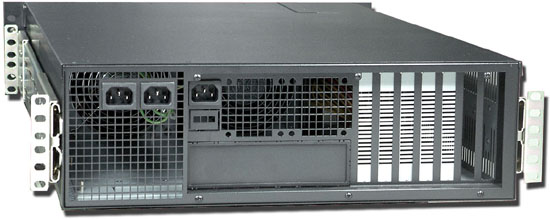

950W Quad Opteron redundant power supply with PFC
* with
2 intake 120x38mm
ball bearing fans
*
support 13x16" Tyan Quad Opteron
serverboard
*
support 5 slot full height (max.
342mm depth) expansion card
*
black colored painting as standard
* chassis dimension:
19" x 3U x 27" (686mm deep)
*
chassis' package information:
NW 25 KGM, GW 30 KGM,
5.52 CUFT (87x63x28.5cm, two boxes packed) |
| Model# |
: |
E350QOSATAIIB |
3U black enterprise Quad Opteron server |
| Model# |
: |
E350QOSCSIB |
3U black enterprise Quad Opteron server |
| Option 1 |
: |
SLIM-CD |
various slim CD-ROM/DVDRW |
| Option 1-1 |
: |
E350QO-SCD-ASM |
E350QO slim CD mounting kit (if slim CD-ROM installed, sensor will be
eliminated) |
| Option 2 |
: |
4USLIDE |
26" slim dry slide rail (pair) |
| Option 2 |
: |
RM300BSLID |
3U/4U slim anodized cabinet rear mounting kit (pcs,
please order 2pcs per chassis) |
| Option 3 |
: |
E350-BEZEL-ASM |
3U black E-class butterfly keylock
security door/2 keys |
| Option 4 |
: |
BG120 |
Front door dust-proof air filter
(please order 2pcs per system)* |
| Option 5 |
: |
TYAN QO MB |
Tyan Quad Opteron 13x16"
serverboard |
| Option 6 |
: |
FAN |
two exhaust
60x25mm ball bearing fans at rear panel |
| |
|
|
|
| |
|
|
3U accessory
package
and detail |
|
